Reel Carrier

ASK A QUOTE

Reel-Carriers are designed to carry and unroll cables or pipes during the mechanical laying process. The self-propelled reel carrier RC320 is suitable to string three conductors of up to 20 ton weight or six conductors up to 10 ton weight. All reel-stands can work simultaneously and have independent control of pulling load, with a constant tension. The tensioning system allows to keep a constant tensioning value during start and stop of reel carrier. Hydraulic negative brakes are provided on reel-stand transmission. Reel carriers are especially designed for renewables projects, wind farms and solar plants.

Benefits

This unit goes hand in hand with the ST2 and the GD2 which are the heart of the mechanical laying process

Less cables joints

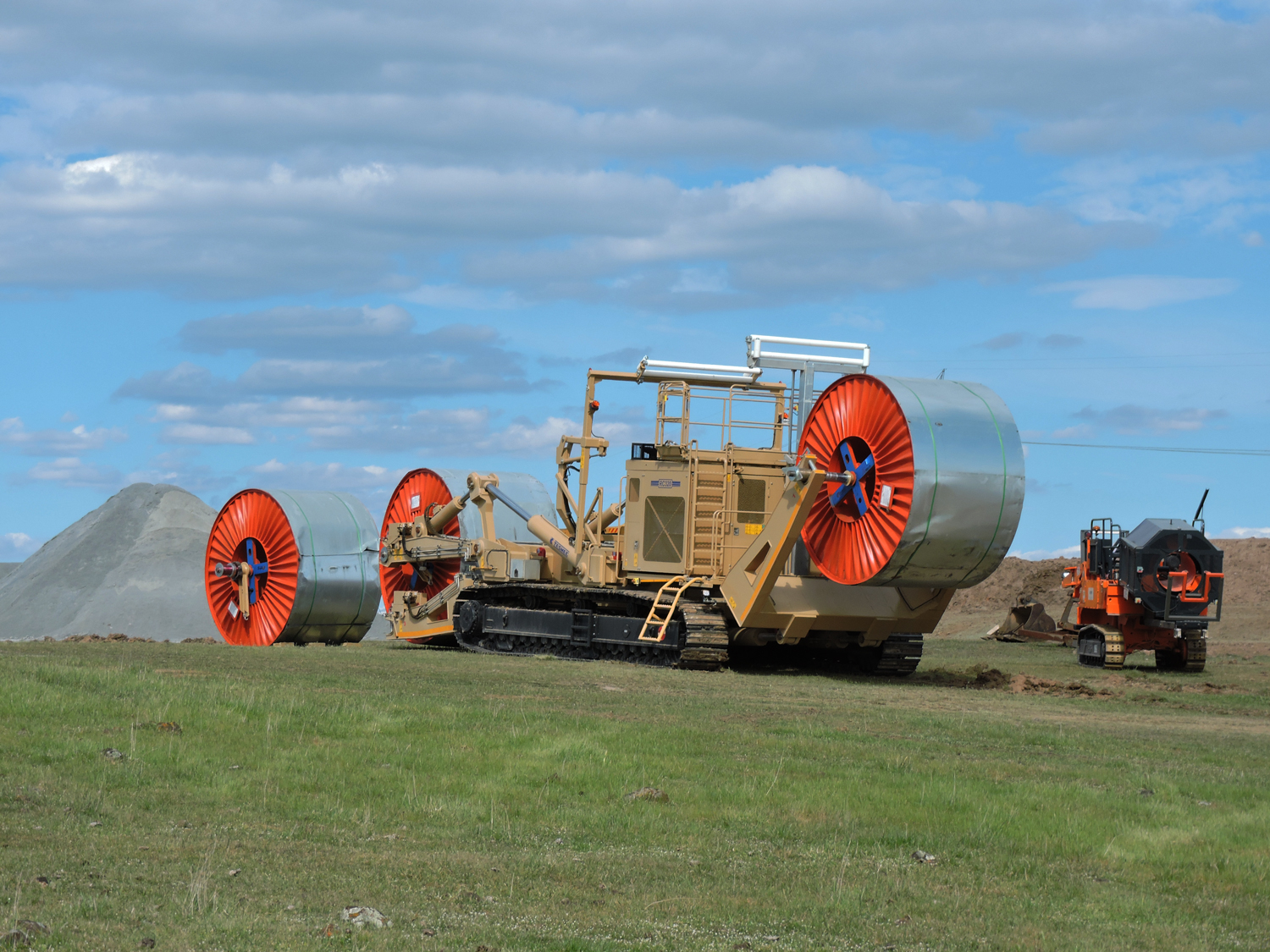

Tesmec RC320 Reel Carrier

Technical Specifications

The RC320 Reel-carrier is dedicated to carrying and unrolling cables or pipes.

This unit goes hand in hand with Marais ST2 and Marais GD2 which are the heart of the mechanical laying process.

The unit can carry up to 3 reels of 20 tons (44 000 pounds) or 6 reels of 10 tons (22 000 pounds).

REEL SPECIFICATIONS
D. 2000 mm x W. 2250 mm 10 ton
D. 2500 mm x W. 2250 mm 15 ton
D. 3800 mm x W. 2250 mm 20 ton
D. 4200 mm x W. 2250 mm 20 ton
