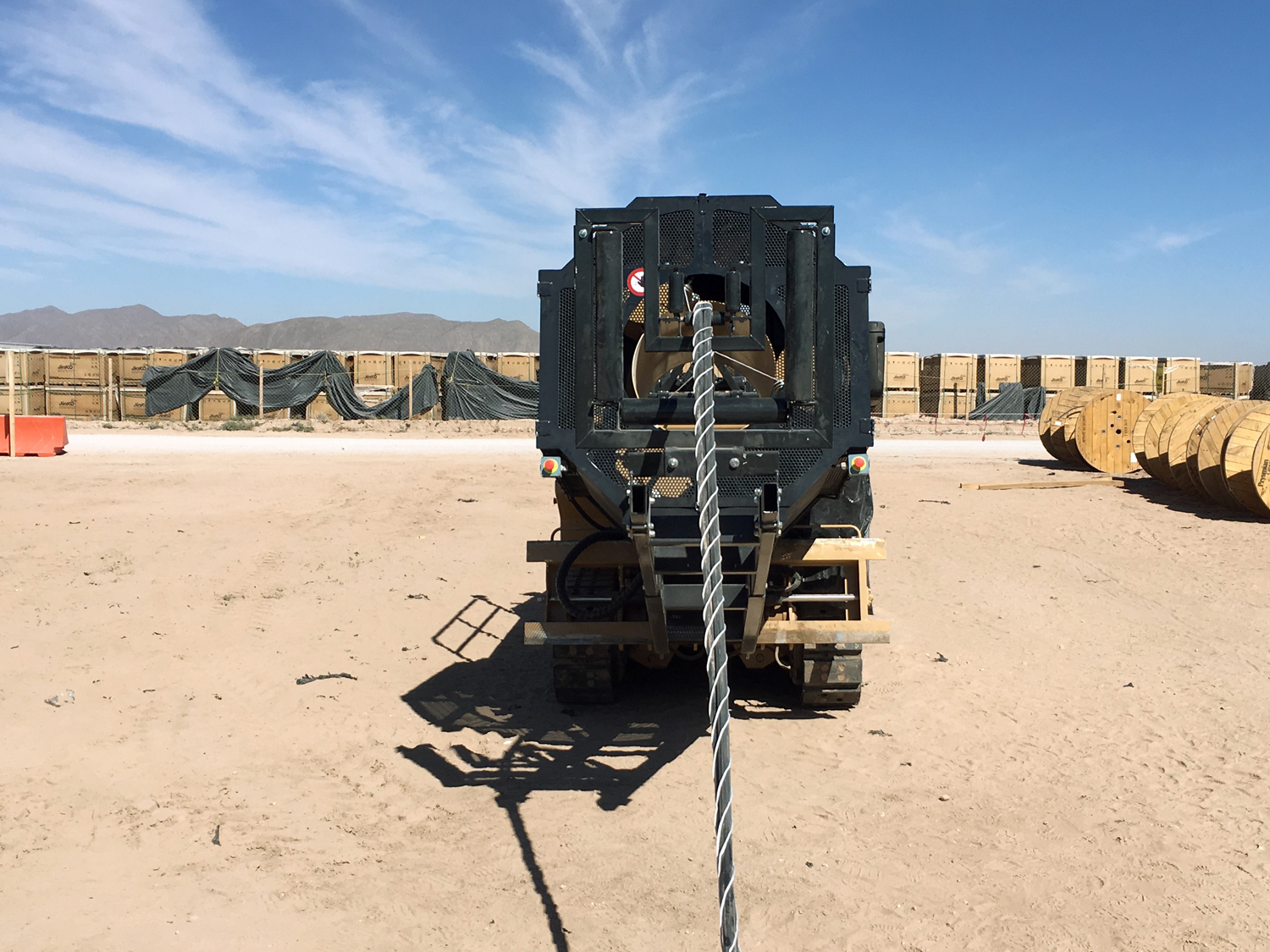

Wrapping unit to bundle cables

The wrapping unit is designed to bundle cables or HDPE (high-density polyethylene pipes) ducts in trefoil. This machine is used to wrap a string around the ducts or cables with the aim to keep their position during the laying operation. It is a solution to wrap up the unipolar cables in the clover configuration. This process enables to lay cables and ducts in a very accurate and steady way during the mechanical laying process. This operation permits to use reels with longer cables, thus minimizing the number of joints and reducing the related costs.

Benefits

This unit goes hand in hand with the ST2 and the GD2 which are the heart of the mechanical laying process

The wrapping machine guides cables or ducts into the trench and positions them precisely as per specifications

Longer length of single core cables can be used, decreasing the number of joints and thus the overall cost of loss on a project

Technical Features

Tesmec Wrapping Machine for Mechanical Cable Laying
  • Variable tilt tracks (self-leveling)
  • Remote control
  • Rubber track pads

Technical Specifications

The wrapping unit is dedicated to bundling cables or PEHD ducts in a trefle position.

This process enables to position in a precise and steady manners cables and ducts on a whole project.

This unit goes hand in hand with Marais ST2 and Marais GD2, which are the heart of the mechanical laying process.



HIGHLY REGULATED COUNTRIES

MAX HORSEPOWER 73 hp (54.5 kW)
ENGINE KOHLER KDI 2504 TCR (EPA Tier4 / EU StageIIIB)
WEIGHT 6.900 kg | 15,211 lbs
GROUND PRESSURE 8,18 psi (0.575 kg/cm2)

LESSER REGULATED COUNTRIES

MAX HORSEPOWER 100 hp (74.5 kW)
ENGINE Perkins 1104D-44T Tier 3
WEIGHT 6.900 kg | 15,211 lbs
GROUND PRESSURE 8,18 psi (0.575 kg/cm2)
